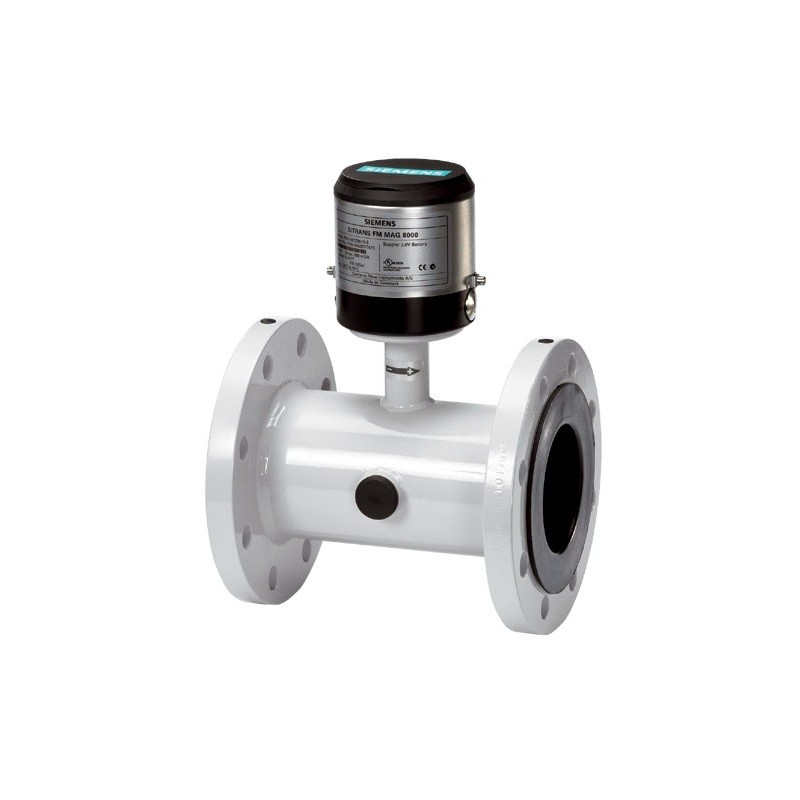

MAG 8000 CT for revenue and bulk metering (7ME6820)

Easy to install
 • Compact or remote solution with factory mounted cable and customer setting from factory
 • IP68/NEMA 6P enclosure. Sensor can be buried
 • Flexible power supply - internal or external battery pack or mains power supply with battery back-up possibilities
Long-term stability/Low cost of ownership
 • No moving parts in a robust construction means less wear and tear
 • Basic and advanced transmitter versions with different optional add-on communication modules fulfil various customer
requirements for high cost efficiency
 • Bi-directional measurement with an outstanding low flow performance
 • Up to 10 years maintenance-free operation in typical applications
 • Insignificant pressure drop
Intelligent information, easy to access
 • Advanced information on site
 • Advanced statistics and diagnostics
 • Connectable to common AMR systems

Technical specifications:

 Meter
 Accuracy  - OIML R 49/OIML R 49 MAA for DN 50 ... DN 300 (2" ... 12"), Class I and II with turn down up to Q3/Q1 = 400 at Q2/Q1 =1.6
           - MI-001 verification for DN 50 … DN 600 (2" ... 24"), Class II with turn down ratio Q3/Q1 = 250, Q3/Q1 = 200 or Q3/Q1 =160
             at Q2/Q1 = 1.6
           - FM Fire Service for DN 50, DN 80, DN 100, DN 150, DN 200, DN 250, and DN 300 (2", 3", 4", 6", 8", 10", and 12") 1.5% (Qmin to Qmax)
 Low flow cut-off (default) - 0.25 %
 Media conductivity - Clean water > 20 ?s/cm
 Temperature
 Ambient    - -20 ... +60 °C (-4 ... +140 °F) MI-001: -25 ... +55 oC (-13 ... +131 oF)
 Media      - 0.1 ... 50 °C (32 ... 122 °F)
 Storage    - -40 ... +70 °C (-22 ... +158 °F)
Enclosure rating
 Remote sensor - IP68 to EN 60529/NEMA 6P, 10 mH2O cont.
 Compact version - IP68 to EN 60529/NEMA 6P, 3 mH2O for six months
Certificates and approvals
 Calibration (standard) - 2 x 25 % and 2 x 90 %
 Material certificate EN 10204 3.1 - Available when ordering together with meter)
 Drinking water approvals • WRAS (BS 6920 cold water) UK
                          • ACS Listed France
                          • DVGW W270 Germany
                          • Belgaqua (B)
                          • MCERTS (GB)
 Fire Service approval  - FM Fire Service (1044)3)
 Custody transfer approval • OIML R 49 and OIML R 49 MAA approval (DN 50 ... DN 300 (2" ... 12"))
                           • MI-001 approval (DN 50 ... DN 600 (2" ... 24")) (DK-0200-MI-001-011)
                           • PTB K7.2
 Conformity  • CEN EN 14154, ISO 4064
             • PED: 2014/68/EU4) For pressure/temperature curves, see MAG 3100 on page 3/70.
             • EMC: IEC/EN 61326
 Sensor version  - DN 50 ... 600 (2" ... 24")
 Sensor material - Carbon steel ASTM A 105, with corrosion resistant two-component epoxy coating (150 ?m/300 ?m)
                 - Corrosivity category C4, according to ISO 12944-2
 Measuring principle - Electromagnetic induction
Excitation frequency
 Basic version
 • Battery-powered - DN 50 ... 150 (2” ... 6”): 1/15 Hz
                   - DN 200 … 600 (8” … 24”): 1/30 Hz
 • Mains-powered   - DN 50 ... 150 (2” ... 6”): 6.25 Hz
                   - DN 200 … 600 (8” … 24”): 3.125 Hz
Advanced version
 • Battery-powered - DN 50 ... 150 (2” ... 6”): 1/15 Hz (adjustable up to 6.25 Hz; reduced battery lifetime)
                   - DN 200 … 600 (8” … 24”): 1/30 Hz (adjustable up to 3.125 Hz; reduced battery lifetime)
 • Mains-powered   - DN 50 ... 150 (2” ... 6”): 6.25 Hz
                   - DN 200 … 600 (8” … 24”): 3.125 Hz
Flanges
 EN 1092-1 (DIN 2501) - DN 50 … 150 (2" … 6"): PN 16 (232 psi)
                      - DN 200 … 300 (8" … 12"): PN 10 or PN 16 (145 psi or 232 psi) up to DN 600 (24") in preparation
 ANSI 16.5 Class 150  - 2” … 12”: 20 bar (290 psi) up to DN 600 (24") in preparation
 AWWA C-207           - 28" … 48": PN 10 (145 psi)
 AS 4087              - DN 50 … 300 (2" … 12"): PN 16 (232 psi) up to DN 600 (24") in preparation
 Liner - EPDM
 Electrode and grounding electrodes - Hastelloy C276/2.4819
 Grounding straps - Grounding straps are premounted from the factory on each side of the sensor

  MAG 8000 CT (Revenue program) water meter type approval
MAG 8000 CT program is type approved and verified according to international water meter standard OIML R 49.
The custody transfer program is approved as Class I and Class II, for the sensor program from DN 50 to DN 300, at different Q3 and
Q3/Q1. Q2/Q1 = 1.6 and follows OIML R 49 specification.

  MAG 8000 CT (Revenue program) MI-001
MAG 8000 CT program is type approved according to international water meter standard OIML R 49. Since the first November 2006
the MI-001 water meter directive is in force, which means that all water meters can be sold across the EU borders if the water meters
contain a MI-001 label.
The MAG 8000 CT MI-001 verified and labeled products are a Class II aproval according to Directive 2014/32/EU of the
European Parliament and Council of 26 February, 2014 on measuring instruments, Annex VI Thermal Energy Meters (MI-004) in the sizes
from DN 50 to DN 400.
The MID certification is obtained as a B + D module approval according to the above mentioned directive.
Module B : Type approval according to OIML R 49
Module D : Quality insurance approval of production

  MAG 8000 CT (7ME6820) for Fire Service applications
MAG 8000 CT (7ME6820) is FM Fire Service approved for automatic fire protection systems according to the Fire Service Meters
Standard, Class Number 1044. The approval is applicable for the sizes DN 50, DN 80, DN 100, DN 150, DN 200, DN 250, and DN 300
(2", 3", 4", 6", 8", 10", and 12") with ANSI B16.5 Class 150 flanges. The FM Fire Service approved product can be ordered via the
Z-options P20, P21 and P22.

  Installation conditions
Please refer to “System information SITRANS F M electromagnetic flowmeters”.

  Battery operation time and calculation
The battery operation time depends on the connected battery pack as well as the operation condition of the meter. MAG 8000 calculates
the remaining capacity every 4 hours and includes all consuming elements. Calculation compensates for temperature influence on battery
capacity (drawing).
