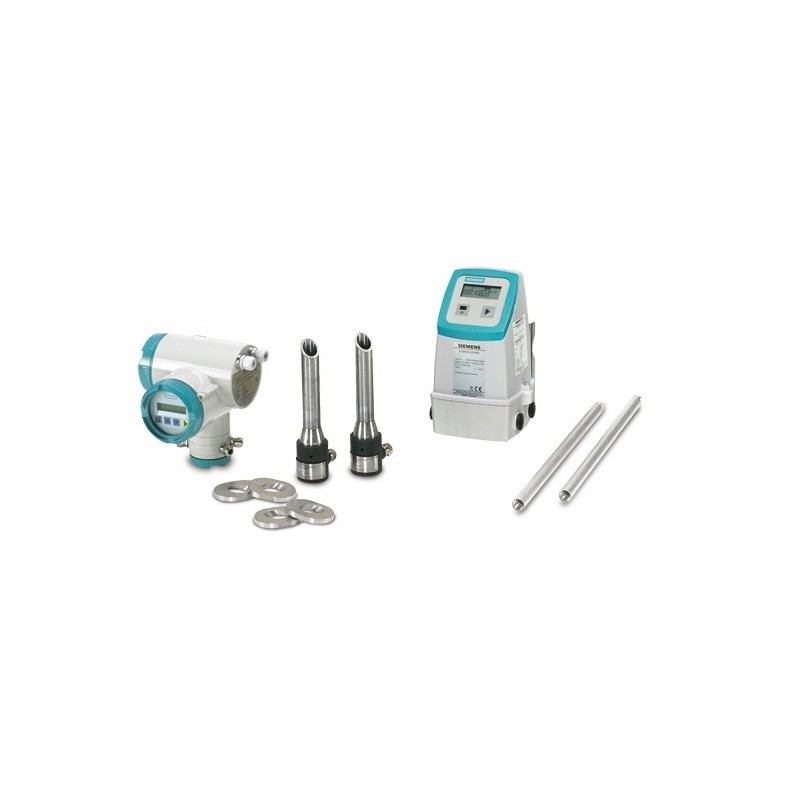

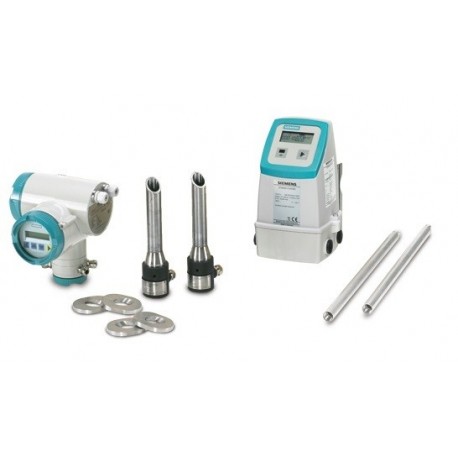

Flowmeter SONOKIT (with FUS060)

Design
The SONOKIT package box contains all necessary parts to build
a ultrasonic flowmeter on existing pipes depending on choices
at ordering:
• Papers to wrap around pipes for alignment of sensors
• Transducer alignment tools
• Mounting plates and, transducer holders and SONO 3200
transducers
• Transducer cables
• SITRANS FUS060 transmitter for wall mounting
• 4 track version is available on request

Accuracy
Typical, depending on accuracy of
measurements of installation
• 2-Track: ? ± (0.5 … 1.5 %)
• 1-Track: ? ± (1 … 3 %)
Note:
Accuracy depends on the accuracy of the measurements taken at location.
This means that inaccurate measurements of angles, distance between transducers, wall thickness and pipe diameter have a direct effect
on the accuracy. Values measured are entered into the memory of the FUS060 transmitter.

SONOKIT is a transit time based ultrasonic flowmeter for retrofitting
on existing pipelines.
The kit includes all necessary parts and special tools to make the installation as 1- or 2-track flowmeter.
The set is made for installation on empty pipes or pipes under pressure without process shut-down (hot-tap).
Please contact Siemens for further information on hot-tap tools and instructions.
SONOKIT has in-line transducers (in contact with media) which assure superior accuracy and performance.

Size
Size DN 100 … DN 4000 (4” … 160”)
Line pressure max. 40 bar (580 psi)
Media/surface temperature • Standard version:
-20 … +200 °C (-4 … +392 °F)
• ATEX Ex-d version:
-20 ... +180 °C (-4 … +356 °F)
• ATEX Ex-i version:
-10 ... +190 °C (14 ... 374 °F)
Ambient temperature -20 ... +60 °C (-4 ... +140 °F)

Transducer enclosure/approvals/certificates
Standard version IP67 (NEMA 6) / IP68 (NEMA 6X) Ex approval System ATEX approval for
SONO 3200 Ex i transducers together with transmitter
FUS060-Ex:
ATEX II 2G Ex dem [ia/Ib] IIC
T6/T4/T3 or
ATEX II 2G EEx d T3-T6 with
SONO 3200 Ex d transducers (for standard FUS060 transmitter, installed outside of Ex zone)
Material certificates EN 10204-3.1 material certificate on transducer mounting parts

Benefits
Cost-effective solution – contains all the necessary components for retrofitting
• SONOKIT is easy to install in pipeline sizes DN 200 to
DN 4000 (8” to 160”) 1-track DN 100 to DN 2400 (4” to 96”) –
without process shut-down or flow interruption
• No bypass installation necessary – withstands pressures up to
40 bar (580 psi) and media temperatures between -20 °C and
+200 °C (-4 °F and +392 °F)
• High accuracy – the bigger the pipe, the more accurate the result
• Solid construction and no moving parts for a 100% maintenance
and obstruction free flowmeter
• The SONOKIT comes with transducers in IP68 enclosure
• Available in a robust version that can be buried and withstands
constant flooding
• In-line transducers assure superior accuracy and performance
• Automatic calculation of the calibration factor when pipe geometry
data are entered in the transmitter
• Transmitter versions with HART or PROFIBUS PA

Transducer materials
Terminal housing Standard version: PA 6.6, 100 °C
(212 °F) or stainless steel
AISI 316, 200 °C (392 °F)
Transducer body Standard version: Stainless steel
AISI 316, 200 °C (392 °F)

Application
• Raw water intake for water treatment plants
• Water distribution systems
• Irrigation systems
• Power generation (energy and water)
• District heating plants
• Cooling water plants within the industry and in power stations
• Systems within the oil and refinery business
• Sewage treatment plants
• Plants transporting non-conductive liquids
