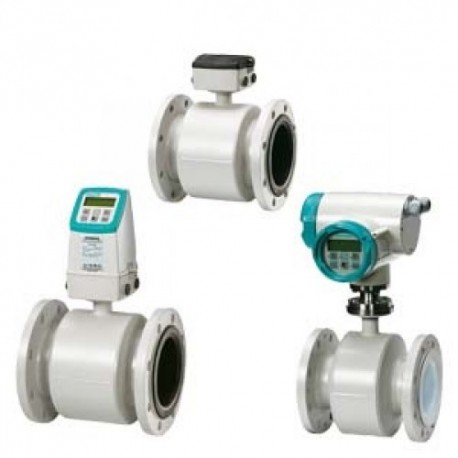

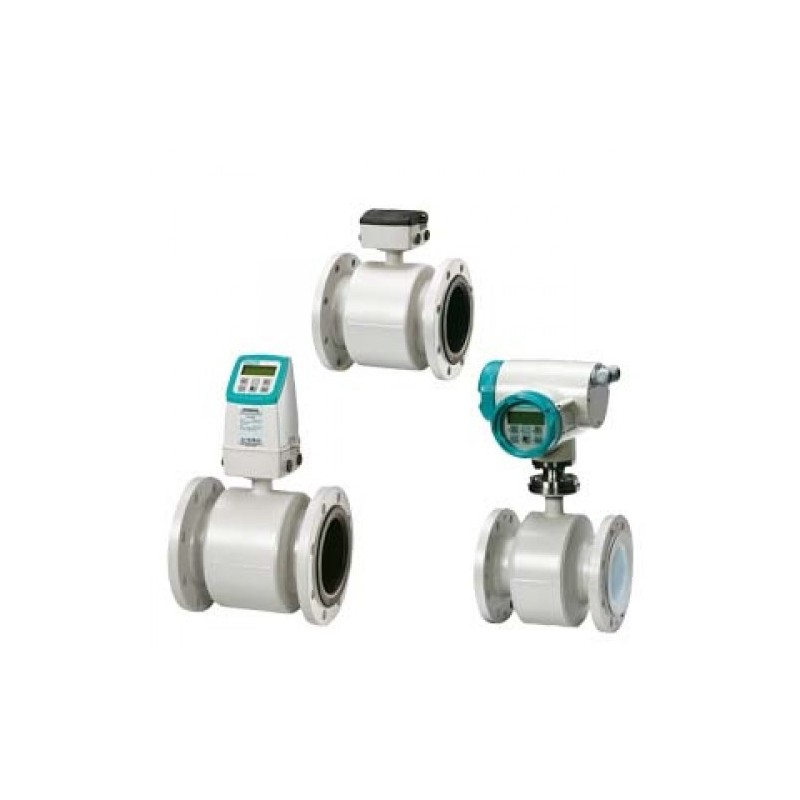

Sensor MAG3100 View larger

Sensor MAG3100

New product

Transmiter MAG5000, MAG6000 and MAG5000CT and MAG6000CT

More details

More info

The SITRANS F M MAG 3100 is an electromagnetic flow sensor in a large variety that meets the demands of almost every flow

• Wide range of sizes: DN 15 to DN 2000 (1” to 78”)
• Wide pressure range: PN 6 to PN 100
ANSI Class 150 / 300, AS 2129 / AS 4087. On request up to
690 bar (10000 psi)
• Wide range of electrode and liner material to fit even the most
extreme process media
• Fully welded construction provides a ruggedness that suits
the toughest applications and environments
• Easy commissioning, the SENSORPROM unit automatically
updates settings.
• Designed to allow patented SITRANS F M in-situ verification
using the SENSORPROM fingerprints.

The main applications of the SITRANS F M electromagnetic flow
sensors can be found in the following fields:
• Process industry
• Chemical industry
• Steel industry
• Mining
• Utility
• Power generation & distribution
• Oil & gas / HPI
• Water & waste water

MAG 5000/6000 transmitters and sensors are packed in separate boxes, the final assembly takes place during installation at
the customer's place. MAG 6000 I/MAG 6000 I ATEX 2G D transmitters and sensors are delivered compact mounted from factory.
Communication module will be pre-mounted in the transmitter.
